Brtvila holendera i spojeva cjevovoda

Proizvodi

LINIJE PUNJENJA

OSTALO

STANDARDNA BRTVILA

ALATNICA

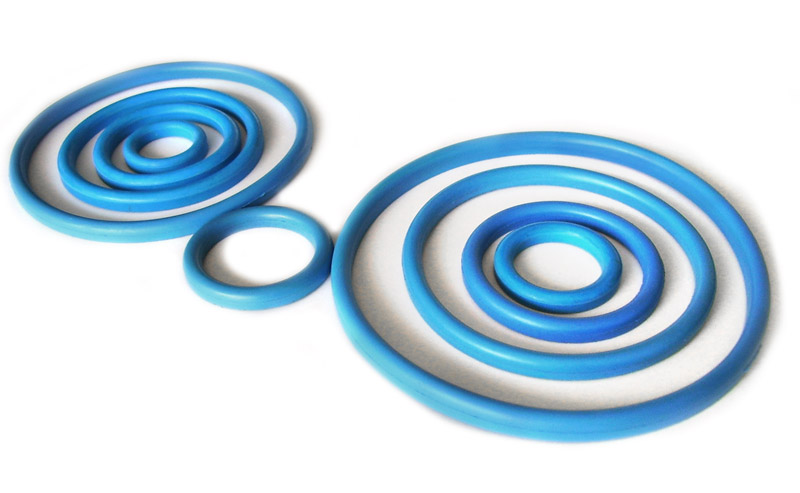

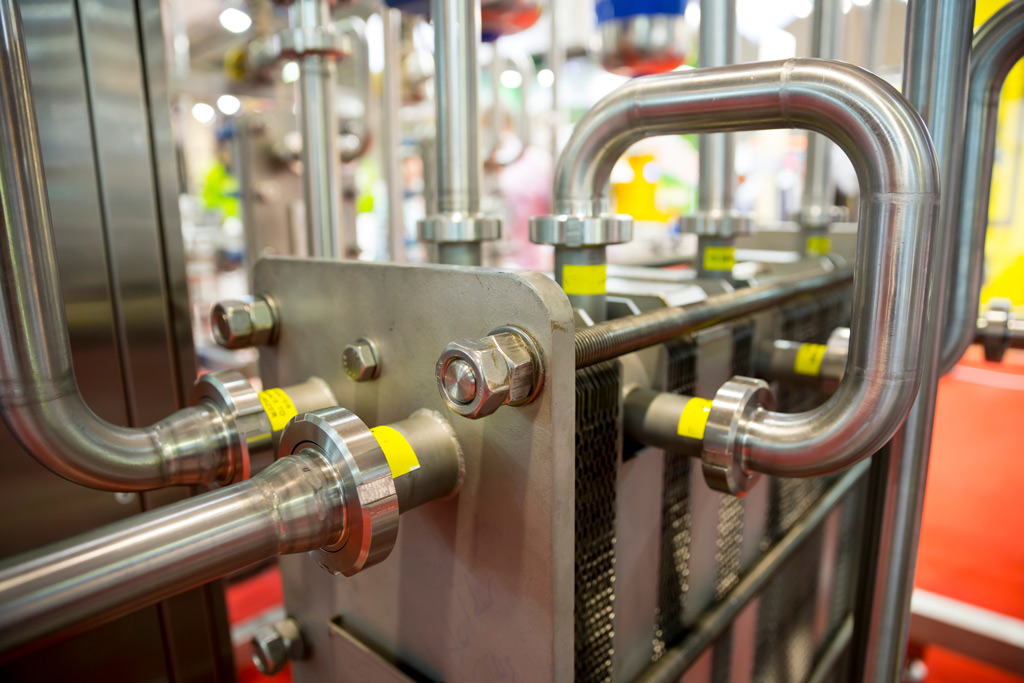

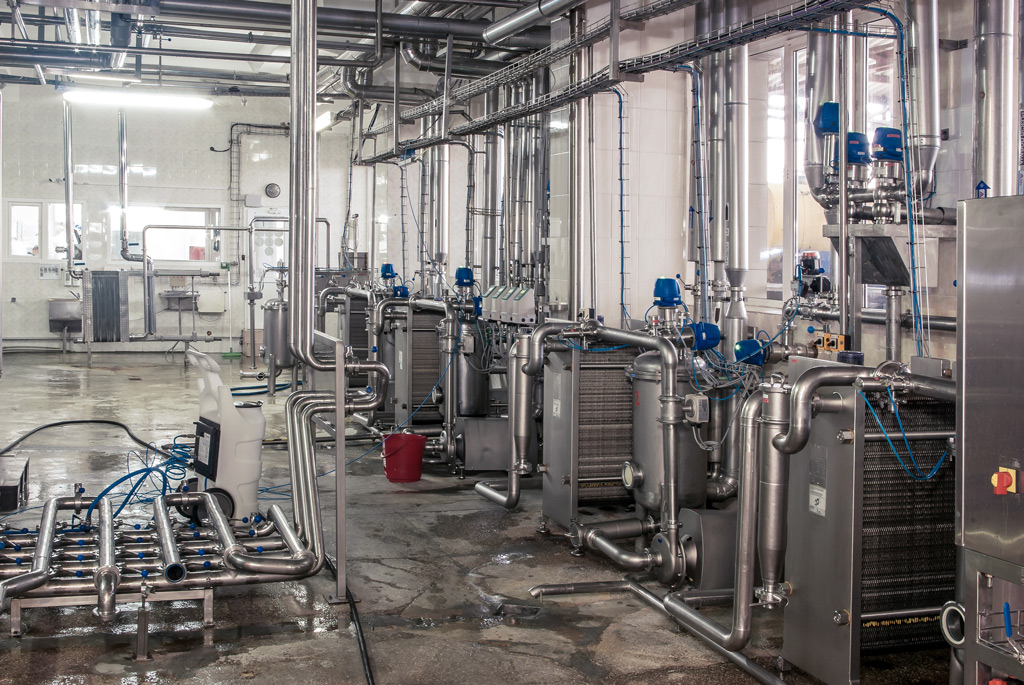

Brtvila holender spojnica koriste se u punionicama alkoholnih i bezalkoholnih pića, uljarama, mljekarama i ostalim dijelovima prehrambene industrije u sistemu cjevovoda.
Naš široki asortiman podrazumijeva sve tipove brtvi

EPDM

VMQ

NBR

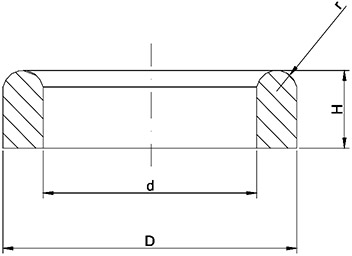

Brtvila za holender spojnice DIN 11851 ( visoka izvedba )

Part No.	NW / DN	ØD	Ød	H
00822	25	40,0	30,0	8,0
00823	32	46,0	36,0	8,0
00824	40	52,0	42,0	8,0
0822A	50	64,0	54,0	8,0
0823A	65	81,0	71,0	8,0
0824A	80	95,0	85,0	8,0
01356	90	104,0	94,0	8,0
01016	100	114,0	104,0	8,0
01532	125	142,0	130,0	8,0
01533	150	167,0	155,0	8,0
00996	75 - 3"	88,0	76,0	8,0

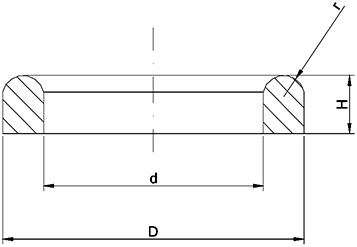

Brtvila za holender spojnice DIN 11851 ( normalna izvedba )

Part No.	NW / DN	ØD	Ød	H
00745	10	20,0	12,0	4,5
00746	15	26,0	18,0	4,5
00747	20	33,0	23,0	4,5
00690	25	40,0	30,0	5,0
00744	32	46,0	36,0	5,0
00552	40	52,0	42,0	5,0
00622	50	64,0	54,0	5,0
00717	60	72,0	62,0	5,0
00643	65	81,0	71,0	5,0
00617	75 ( 3" )	88,0	78,0	5,0
00616	80	95,0	85,0	5,0
02018	90	104,0	94,0	5,0
01009	100	114,0	104,0	6,0
01420	125	142,0	130,0	7,0
01169	150	167,0	155,0	7,0
00085	1 ½"	48,0	38,0	5,0
00881	2"	61,0	51,0	5,0
00967	3"	85,0	75,0	5,0
01068	4"	101,5	91,5	6,5

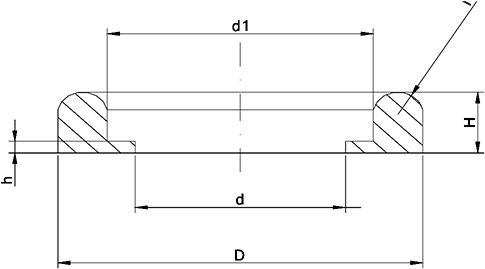

Brtvila za holender spojnice DIN 11851 G

Part No.	NW / DN	ØD	Ød1	Ød	H
02020	10	20,0	12,0	10,0	5,0 / 2,0
02021	15	26,0	18,0	16,0	5,0 / 2,0
02022	20	33,0	23,0	20,0	5,0 / 2,0
02023	25	40,0	30,0	26,5	6,0 / 2,0
02024	32	46,0	36,0	32,5	6,0 / 2,0
02025	40	52,0	42,0	38,5	6,0 / 2,0
02026	50	64,0	54,0	50,5	6,0 / 2,0
02027	65	81,0	71,0	66,5	6,0 / 2,0
02028	80	95,0	85,0	81,5	6,0 / 2,0
02029	100	114,0	104,0	100,5	6,0 / 2,0
02030	125	142,0	130,0	125,0	7,0 / 2,0
02031	150	167,0	155,0	150,0	7,0 / 2,0

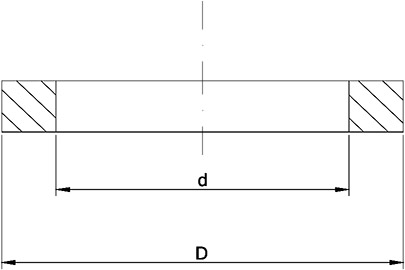

Brtvila za holender spojnice SMS

Part No.	NW / DN	ØD	Ød	H
02010	1"	39,6	27,4	6,0
02011	1 1/2"	50,9	40,0	6,0
02012	2"	65,0	52,7	6,0
02013	2 1/2"	77,7	65,4	6,0
02014	3"	90,3	78,2	6,0
02015	4"	115,8	103,0	6,0
00748	25	32,0	25,3	4,8
00749	38	48,0	36,5	4,8
01281	51	61,0	49,5	4,8
00751	63	73,5	61,5	4,8
01091	76	86,0	73,0	4,8
02019	101	113,0	100,0	4,8

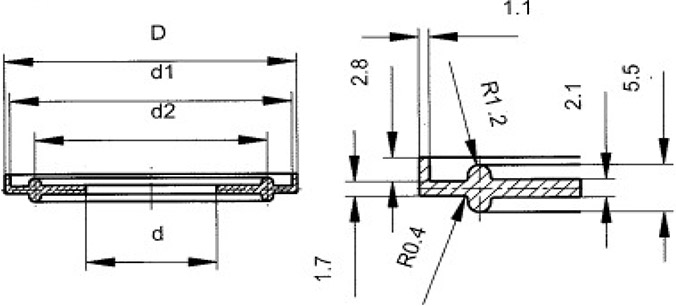

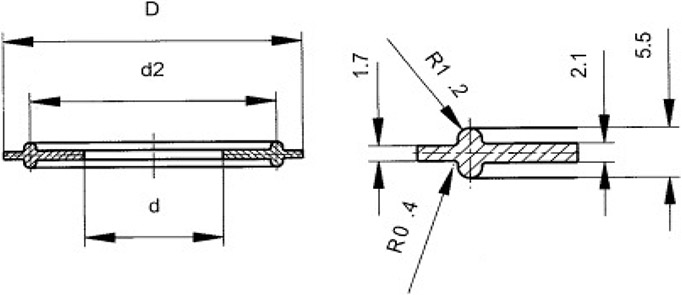

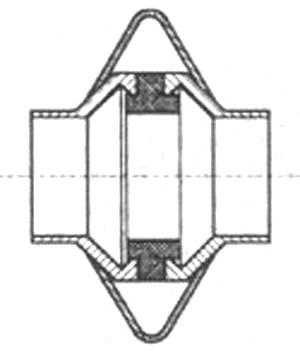

Brtvila Tree Clamp spojnica

Part No.	NW / DN	ØD	Ød	Ød2
02050	10	34,0	10,2	27,5
02051	15	34,0	16,2	27,5
02052	20	34,0	20,2	27,5
02053	25	50,5	26,2	43,5
02054	32	50,5	32,2	43,5
02055	40	50,5	38,2	43,5
02056	50	64,0	50,2	56,5
02057	65	91,0	66,2	83,5
02058	80	106,0	81,2	97,0
02059	100	119,0	100,2	110,0

DN		ØD	Ød	Ød2
INC	mm	ØD	Ød	Ød2
1''	25	50,5	22,8	43,5
1 1/2''	38	50,5	35,8	43,5
2''	51	64	48,8	56,5
2 1/2''	63,5	77,5	60,5	70,5
3''	76,1	91	73,1	83,5
4''	101,6	119	97,8	110

Brtvila Tree Clamp spojnica

Part No.	NW / DN	ØD	Ød	Ød2
02060	10	36,2	10,2	27,5
02061	15	36,2	16,2	27,5
02062	20	36,2	20,2	27,5
02063	25	52,7	26,2	43,5
02064	32	52,7	32,2	43,5
02065	40	52,7	38,2	43,5
02066	50	66,2	50,2	56,5
02067	65	93,2	66,2	83,5
02068	80	108,2	81,2	97,0
02069	100	121,2	100,2	110,0
02070	125	157,2	125,2	146,0
02071	150	185,2	150,2	174,0

DN		ØD	Ød	Ød1	Ød2
INC	mm	ØD	Ød	Ød1	Ød2
1''	25	52,7	22,8	50,5	43,5
1 1/2''	38	52,7	35,8	50,5	43,5
2''	51	66,2	48,8	64	56,5
2 1/2''	63,5	79,7	60,5	77,5	70,5
3''	76,1	93,2	73,1	91	83,5
4''	101,6	121,2	97,8	119	110

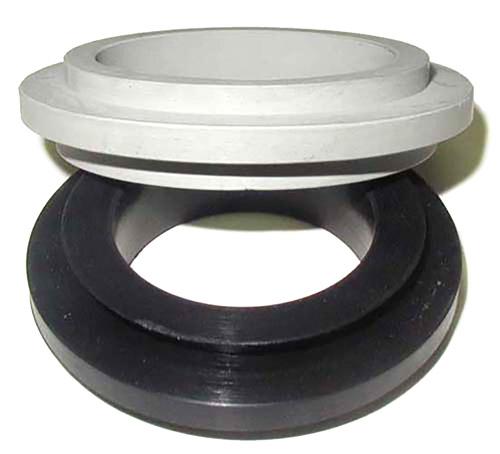

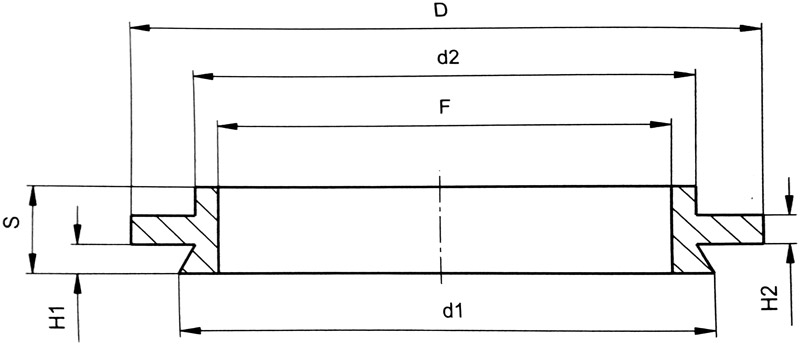

Brtve za Garolla spojnice (vinarske)

DN	D	d1	d2	F	h1	h2	S
70	64,5	52	47	40	4,5	5	14
50	75	61	57	50	4,5	5	14
60	87	70	67	60	4,5	5	14
70	97	81,5	77	70	4,5	5	14
80	108	90	87	80	4,5	5	14
100	128	109	102	95	4,5	5	14
125	158	139	132	122	5,5	6	17

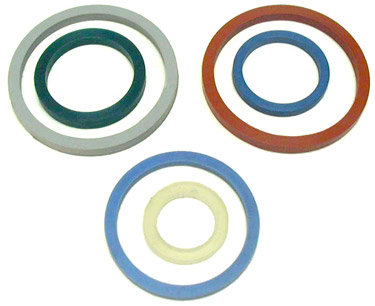

Kvadratna SMS

Poluokrugla Din 11851

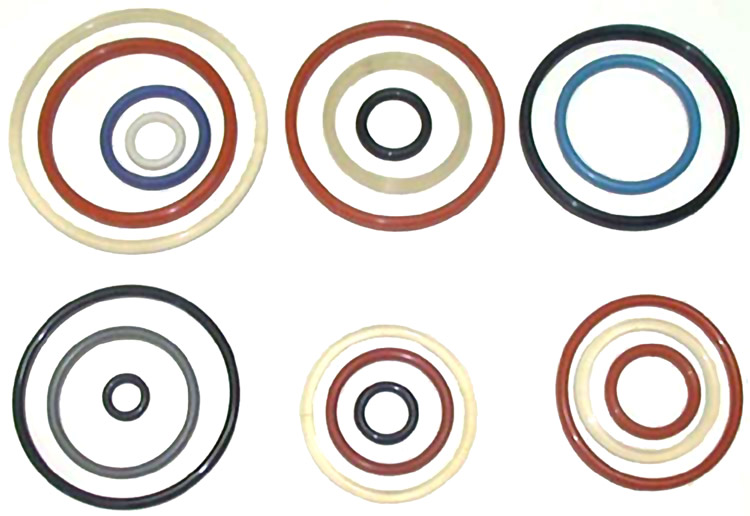

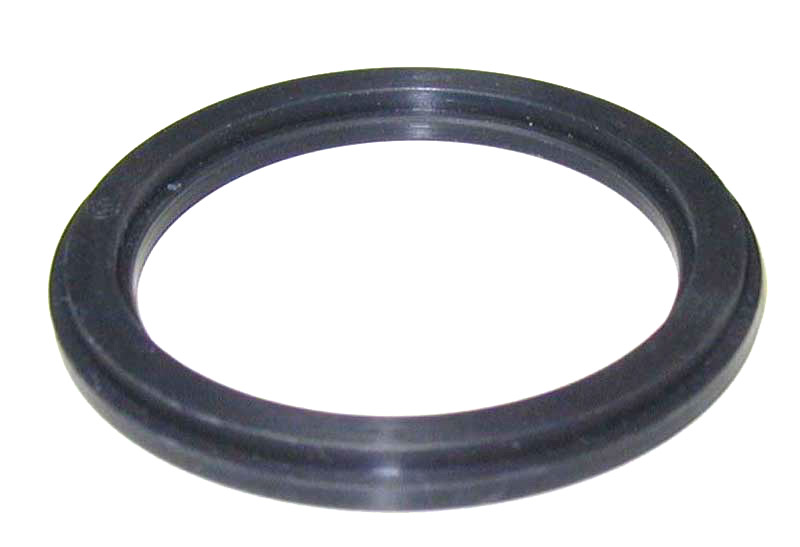

Brtvilo holender spojnice APV

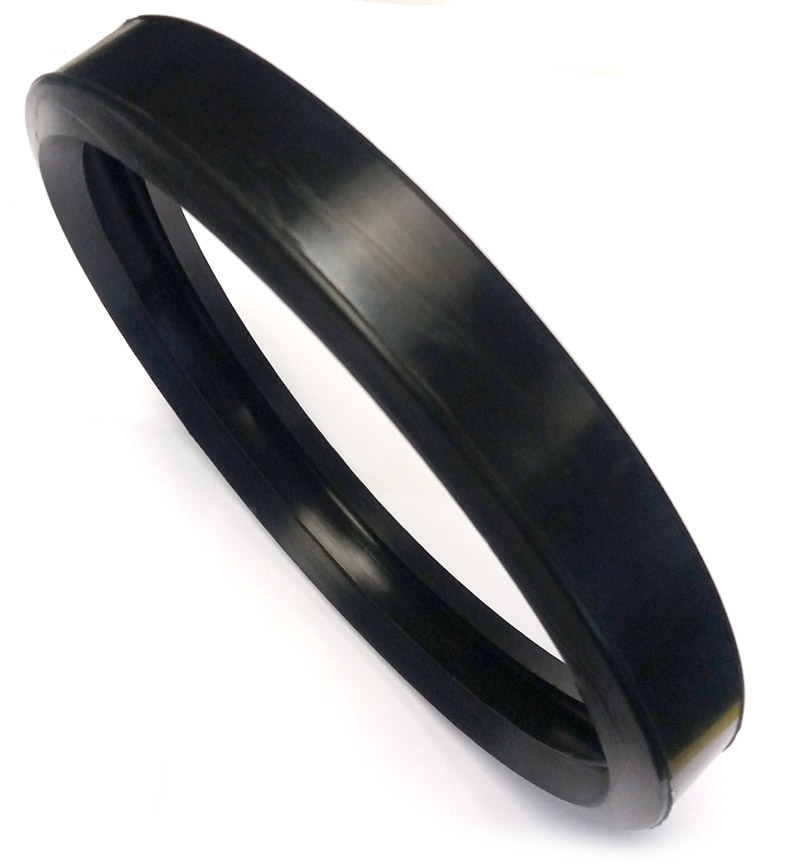

Gruvlok brtve
